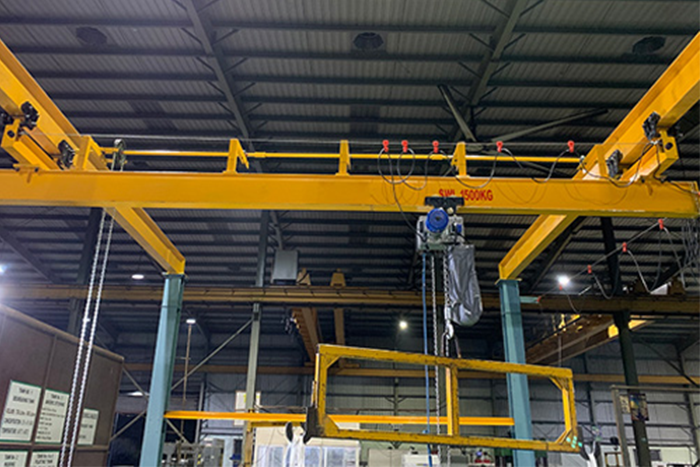

Underslung Overhead Crane
Underslung travelling cranes are designed with rolled section beams or fabricated box beams depending on capacity and span. A variable girder connection design allows us to optimise the available height of lift in each application. The suspended end carriage design introduces the possibility of cantilevers (lateral overhangs) to provide increased hook coverage by allowing the hoist and load to travel beyond the runway track line. TIPL underslung travelling cranes can be specified with a variety of operator control systems including control from a push button pendant suspended from and mobile across the crane bridge or fully remote radio control. TIPL underslung travelling cranes may be equipped with either wire rope hoists or Chain Hoist and most have capacities of 10 t or less because of the limitations of supporting structures.
- Under slung crane is specially design to work in roof - restricted areas where the clearance between the pillar top and the building roof is low.
- They occupy less space and provide maximum approach.
- These cranes can be cost - effectively implemented.
- These cranes are suitable for normal and low - headroom applications.
- Available with IS, DIN, FEM& ISO standards.
- For Industries like Machine Shop, Warehouses, FMCG, Light Fabrication and Many More.
Technical Specification :
- Capacity : 1 to 20 Ton
- Span : 3 to 20 Mtrs
- Lift : 3 to 30 Mtrs
- Hoist Travelling Speed : 3-20 Mtrs /min
- Power Source : Electric
